TORQEEDO MARINE ELECTRIC PROPULSION

Torqeedo is the pioneer and undisputed global market leader in electric marine propulsion, designing and manufacturing state-of-the-art outboards, inboards, pod drives, and series hybrid systems from 400 W up to 100 kW. By combining the English words 'torque' and 'speed', Torqeedo brings high-efficiency automotive-grade lithium-ion engineering directly to small dinghies, sailboats, luxury yachts, and heavy commercial workboats.

With an extensive range of products including the ultra-light Travel series, highly robust Cruise outboards and pods, and the high-voltage Deep Blue system, Torqeedo offers a completely integrated, waterproof (IP67), and zero-emission marine system. It features high system efficiency, integrated GPS receivers, real-time range indicators, and WiFi/Bluetooth connectivity via the TorqView app.

The Torqeedo Advantage includes:

Integrated TorqLink system allowing seamless 48V component data sharing
Direct-drive motors for extremely quiet, low-maintenance operations
High-capacity lithium battery configurations (Power 48-5000 / Deep Blue series)
TorqView companion app for trip analysis, tracking, and over-the-air updates

More details: www.torqeedo.com

The Range

Torqeedo Range

Travel, Cruise, Deep Blue and Pod drives — 400 W to 100 kW.

Travel Series

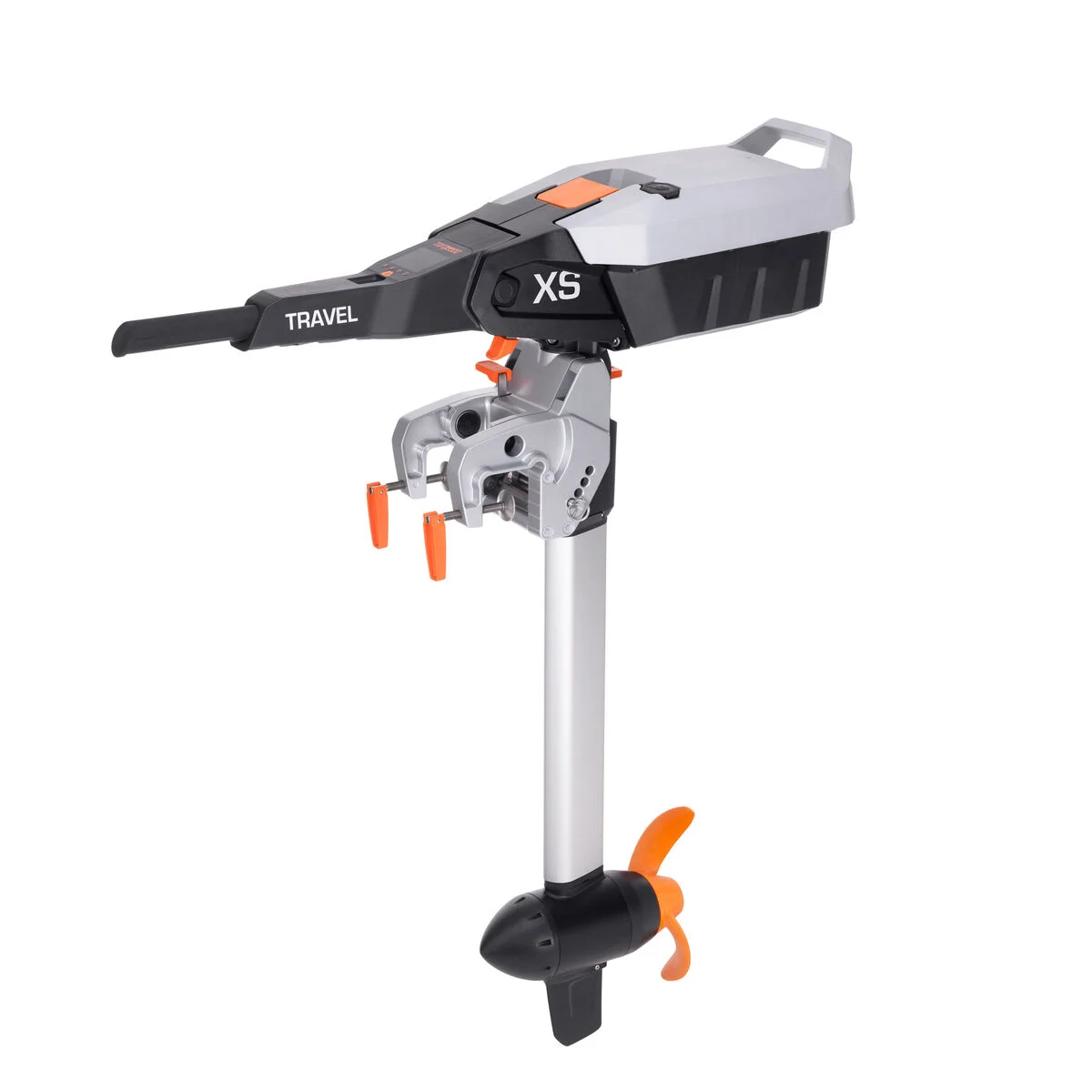

Torqeedo Travel XS / S

Designed for simplicity and ease of use, the Travel XS S is perfect for newcomers and seasoned boaters alike. Whether you’re cruising inland waterways or using your dinghy to get to your sailboat, it’s ready to go wherever you are. The TorqView app is a smart companion app for users of Torqeedo electric motors. It offers a wide range of features that make the boating experience safer, more comfortable, and more informative. Key features include live connection to the motor, trip analysis, real-time tracking, and over-the-air updates. With 700 W of power output, the Travel XS offers the thrust equivalent of a 2 HP outboard, ensuring smooth and efficient rides with low emissions.

Key Features

Compact power for every adventure: The Travel XS delivers 700 W of clean electric power, providing reliable thrust for small to medium boats and effortless handling in any condition.
Lightweight and portable: At just 11.6 kg (25.6 lbs) for the motor and 6.8 kg (15 lbs) for the battery, the Travel XS is easy to transport, mount, and store—perfect for spontaneous trips and compact setups.
Smart lithium battery: Equipped with a 44 V / 648 Wh lithium battery, the Travel XS supports solar charging and features Click & Play connectivity for quick installation and removal.
Intelligent control and connectivity: A color display provides clear performance data at a glance, while app connectivity enables smart monitoring and system updates via your mobile device.
Convenient and ergonomic design: With a foldable tiller, intuitive operation, and robust construction, the Travel XS combines practicality with premium comfort.

Technical Specifications

Technical Data Travel XS S
Input power in watts	700
Recommended battery	648 Wh Li-Ion
Total weight in kg	18.3
Shaft length in cm	62.5
Control	Tiller
Steering	360° lockable

Travel Series

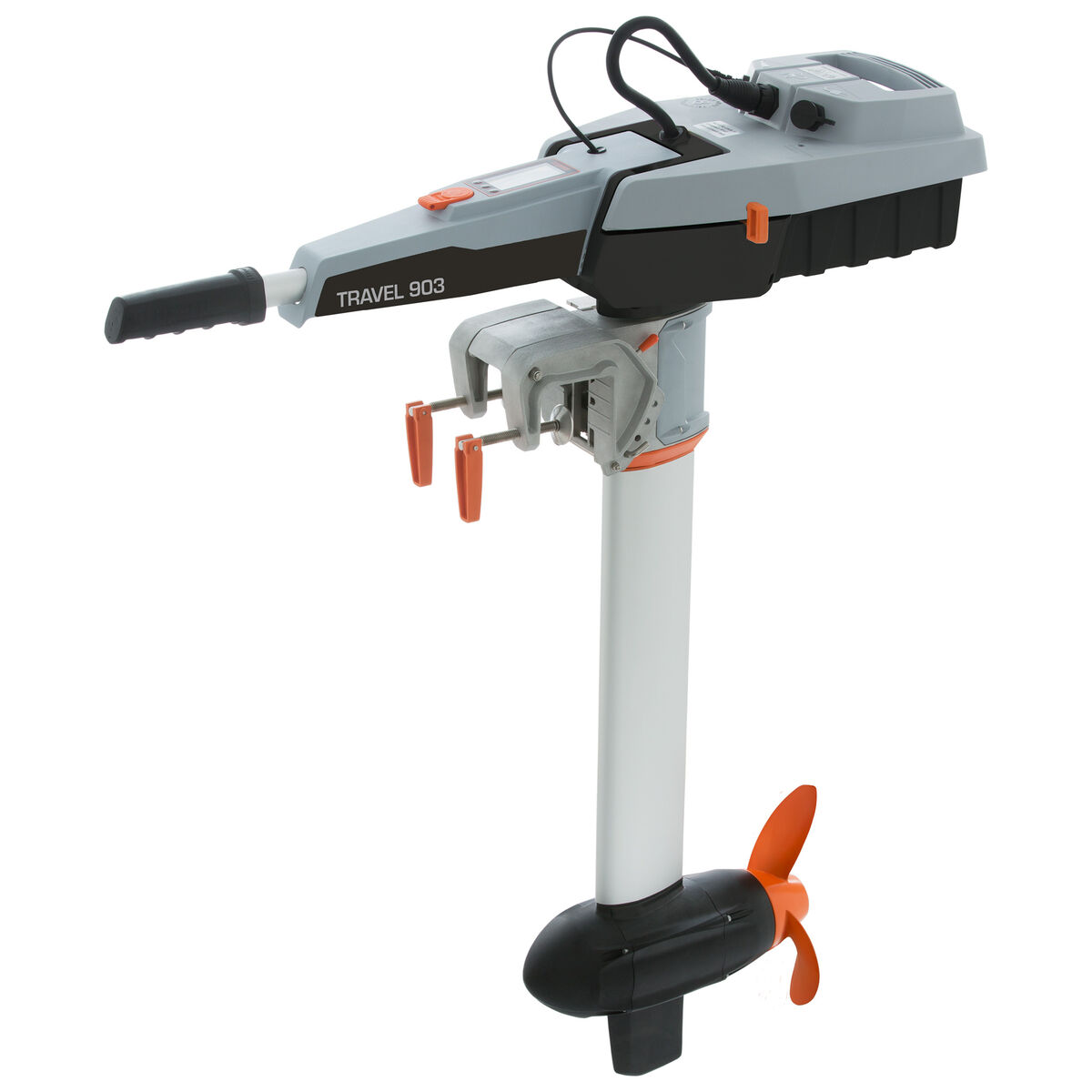

Torqeedo Travel 903

With its launch in September 2023, the Travel 903 presents itself in a functional and fresh design. Limited edition. Boundless adventures. Our iconic Travel motor has represented proven technology and reliability for a decade.

Technical Specifications

Technical Data Travel 903
Input power in watts	900
Propulsive power in watts	440
Integrated battery	915 Wh Li-Ion
Total weight in kg	17.3 (S) / 17.7 (L)
Shaft length in cm	62.5 (S) / 75 (L)
Control	Tiller

Travel Series

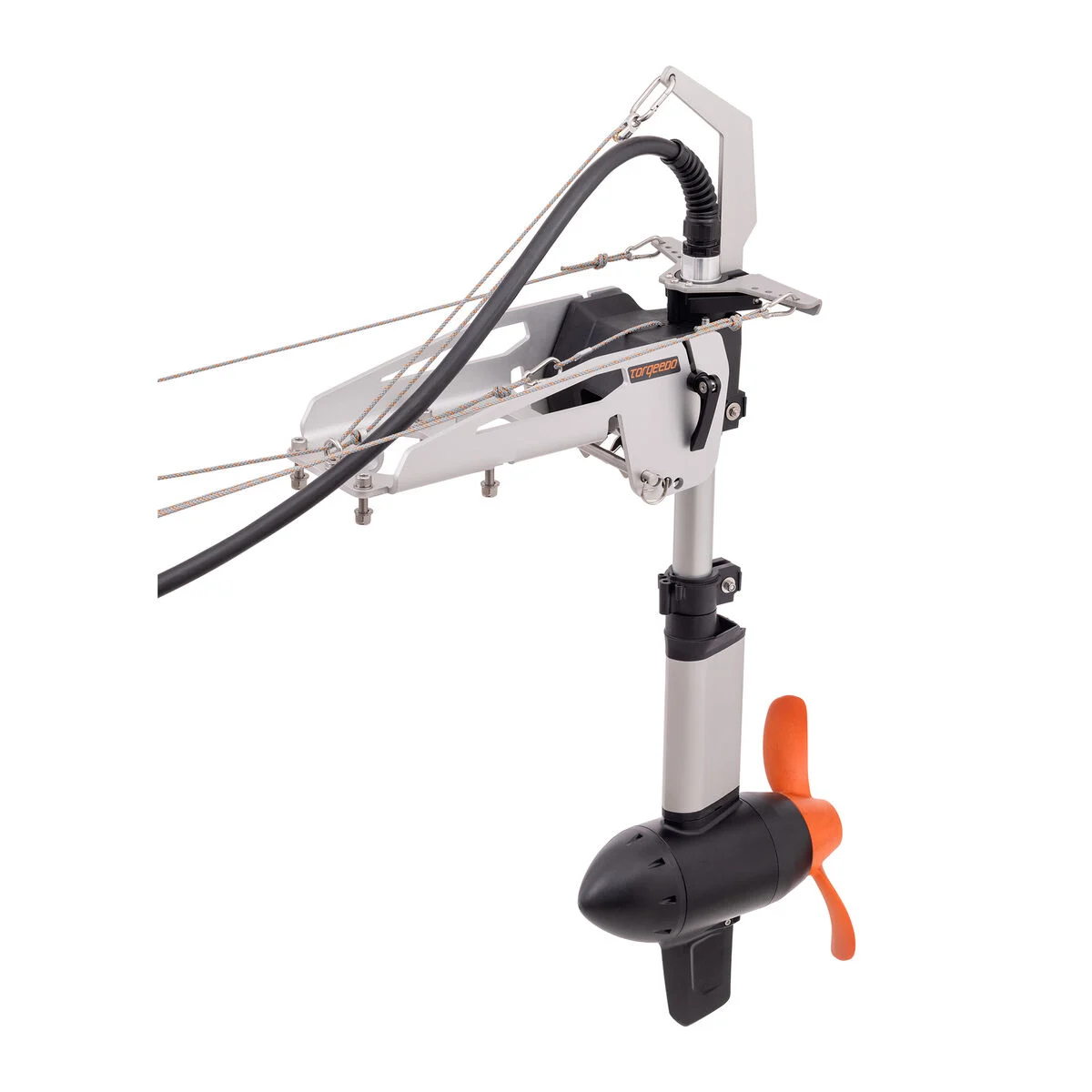

Torqeedo Travel Ultralight

The Travel UL, an 1100W, 3 HP-equivalent direct drive motor, cleanly, quietly and easily powers your adventures courtesy of its 1080 Wh lithium-ion battery, a fast, 180 W charger, and an innovative kayak mount. The ultra-quiet and reliable direct drive motor weighs just 9.8 kg (21.6 lbs) including the mounting system, cables and remote throttle. Cast away with the Adventure Package - your kayak is transformed into the Ultimate Fishing Machine!

Technical Specifications

Technical Data Travel Ultralight
Input power in watts	1100
Recommended battery	1080 Wh Li-Ion
Total weight in kg	17.3 (S) / 17.7 (L)

Travel Series

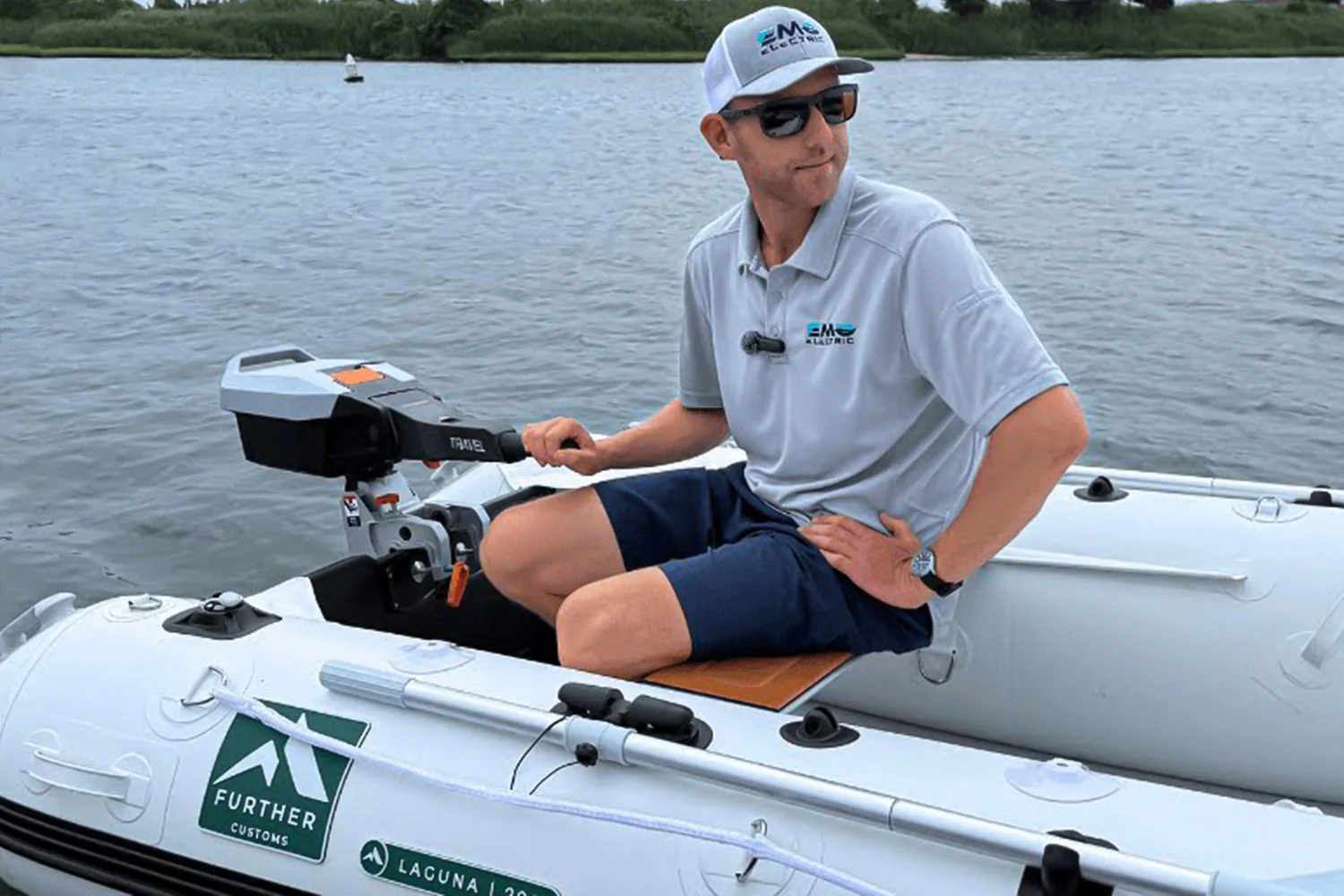

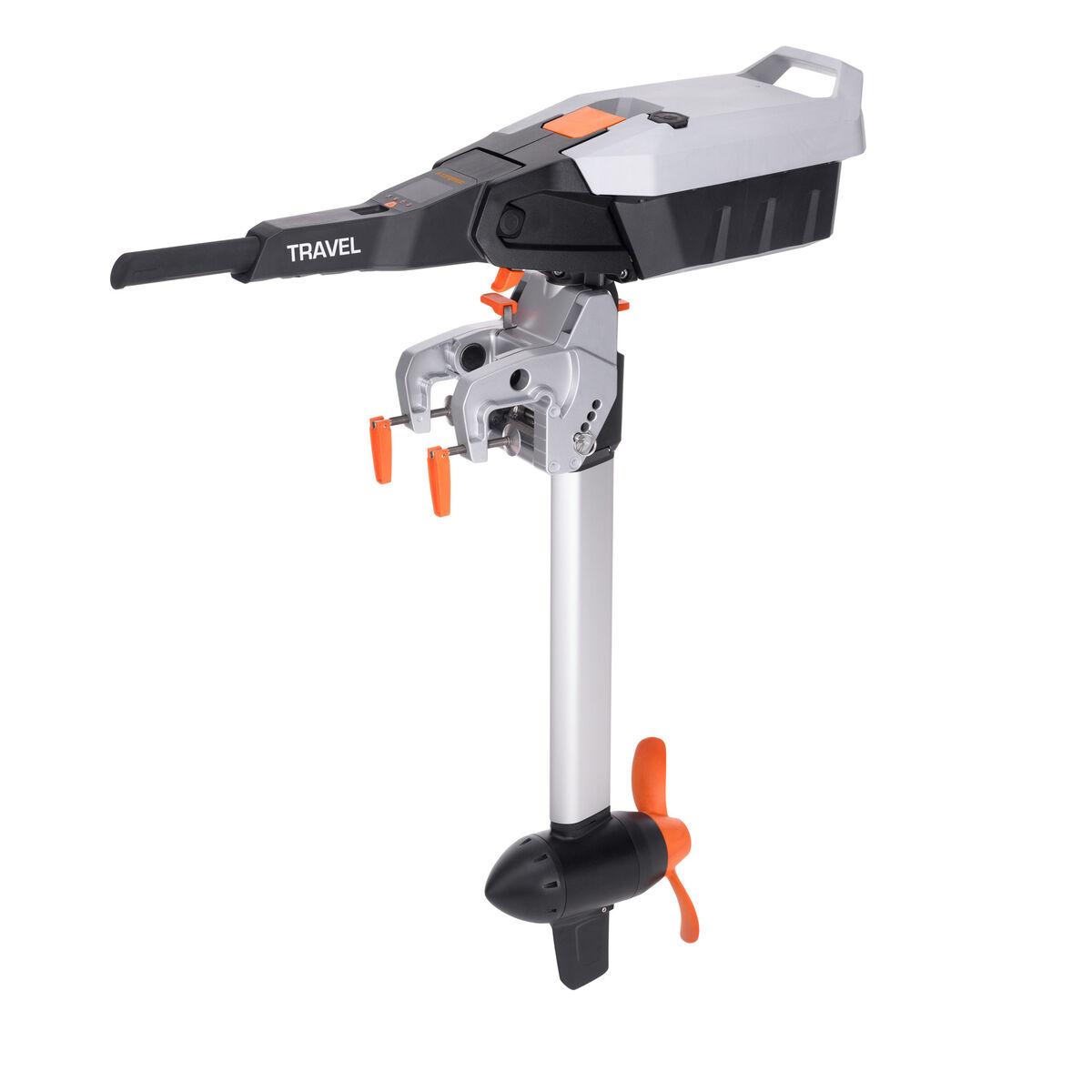

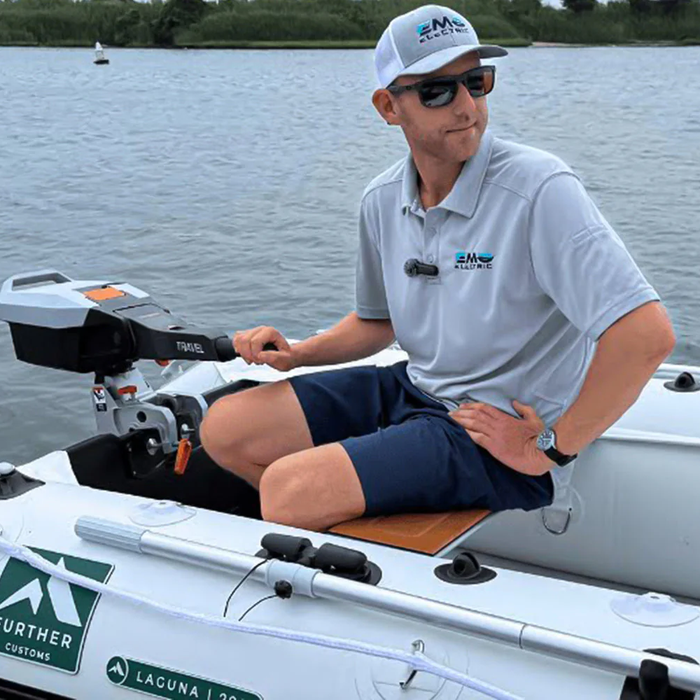

Torqeedo Travel

For tenders, dinghies and daysailers up to 1.5 tons, the Travel’s ultra-quiet and reliable 1100 W direct drive motor is perfect for inland waterways and harbors. It is lightweight and easy to handle at just 11.6 kg (25.5 lbs). It's easy to install and use, too, with two shaft lengths, a stable handle on the shaft head, a handy lever for quick steering adjustments (360° // ±60° // fixed), and flexible tilt and trim positions. It's the Travel you know, upgraded!

Key Features

Lightweight and portable: Emission-free, lightweight and easy to handle at just 11.6 kg (25.5 lbs).

Technical Specifications

Technical Data Travel
Input power in watts	1100
Recommended battery	1080 Wh Li-Ion
Total weight in kg	20.2 (S) / 20.7 (L)

Travel Series

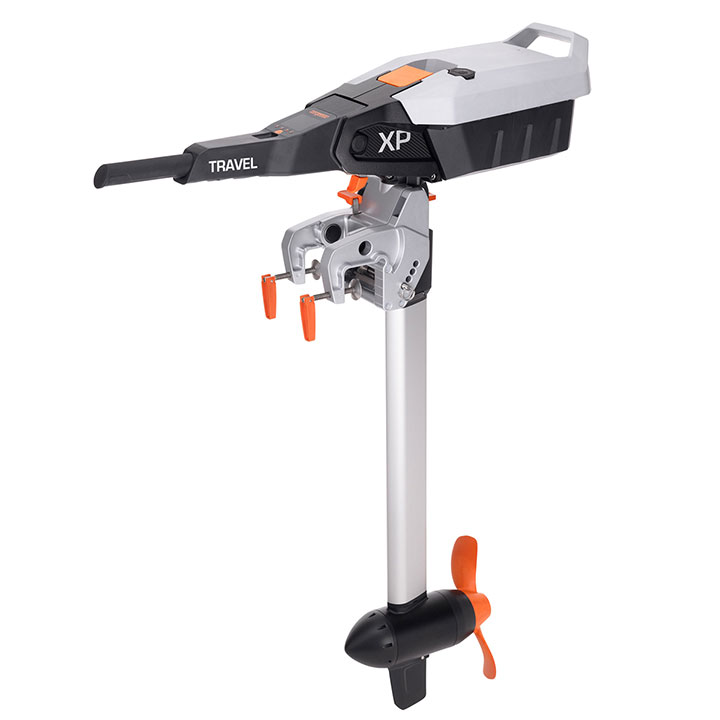

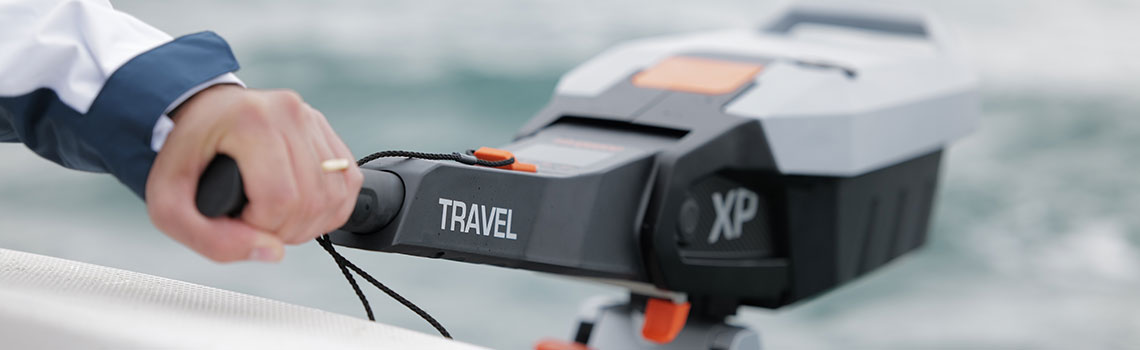

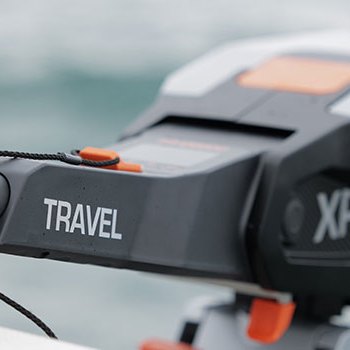

Torqeedo Travel XP

The Torqeedo Travel XP is a powerful 1600 W electric outboard designed for larger boats up to 2 tons and demanding conditions such as coastal waters, wind, and waves. With 25% more thrust than the standard Travel model and performance equivalent to a 5 HP petrol outboard, it delivers quiet, emission-free propulsion through an ultra-reliable direct-drive motor weighing only 12.6 kg.The system includes a built-in backlit color display showing speed, power consumption, battery charge, and remaining range, along with WiFi and Bluetooth connectivity for integration with the TorqView app. Its 1512 Wh integrated lithium battery features a click-and-play design, LED charge indicator, and multiple charging options including mains charging, 12V/24V onboard charging, and solar charging up to 200 Wp. The Travel XP also offers easy handling with adjustable steering, tilt, and trim functions , making it a practical and advanced solution for modern electric boating.

Cruise Series

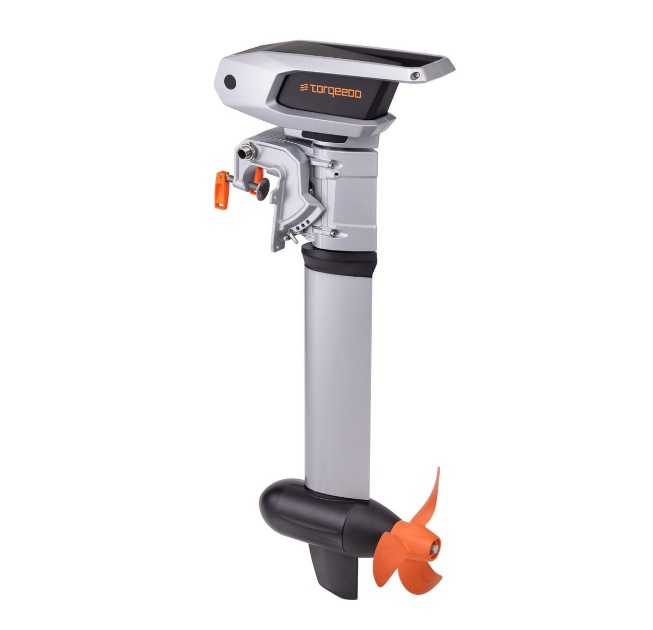

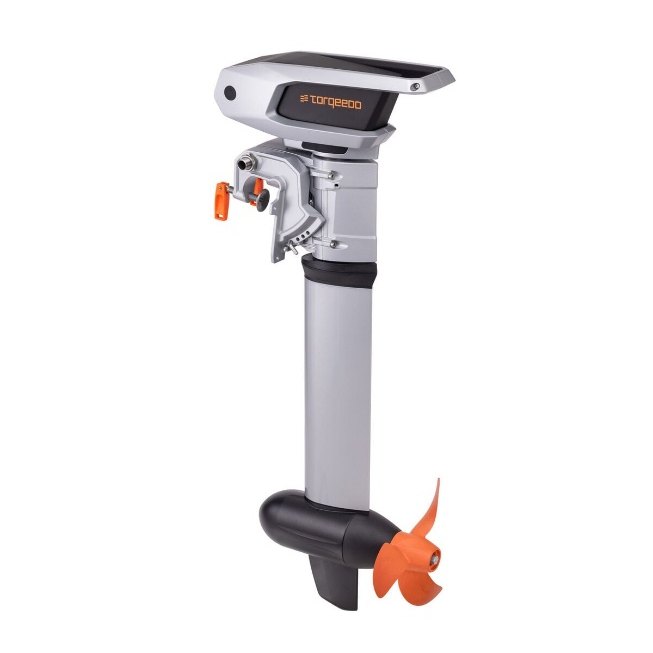

Torqeedo Cruise 3.0 R / T

The Cruise 3.0 (48 V) is a clean, lightweight, and easy to use electric drive for displacement boats up to 3 tons or sailboats up to 30 feet. This budget friendly system gives you up to one hour and forty minutes of full-throttle runtime with a single Power 48-5000 lithium battery, and runs all day at slower speeds. Need more range or speed? You can add up to 16 Power 48-5000 batteries for more energy storage. Choose from short or long shaft, remote- steered (R) or a tiller model (T), or a lightweight and space-saving pod drive (FP).

Technical Specifications

75.5 (L) ideal for 20-inch transom
Technical Data Cruise	Cruise 3.0 (48 V)
Input power (continuous) [W]	3,000
HP-equivalent (propulsive power)	6 HP
Static thrust [lbs]	142
Nominal voltage [V]	48
Weight (motor only) [kg]	20.8 (RS) \| 21.3 (RL) \| 22.2 (TS) \| 23.1 (TL) \| 18.5 (FP)
Recommended battery	Power 48-5000
Battery [Wh] / weight [kg]	5,000 / 37
Shaft length [cm]	62.5 (S) ideal for 15-inch transom
Standard propeller	Propeller B 12 × 10,5 WDR
Folding propeller	Propeller B 12 × 7 FLD
Maximum propeller speed [rpm]	1,200
Control	Tiller, Remote throttle
TorqLink	TorqLink

Cruise Series

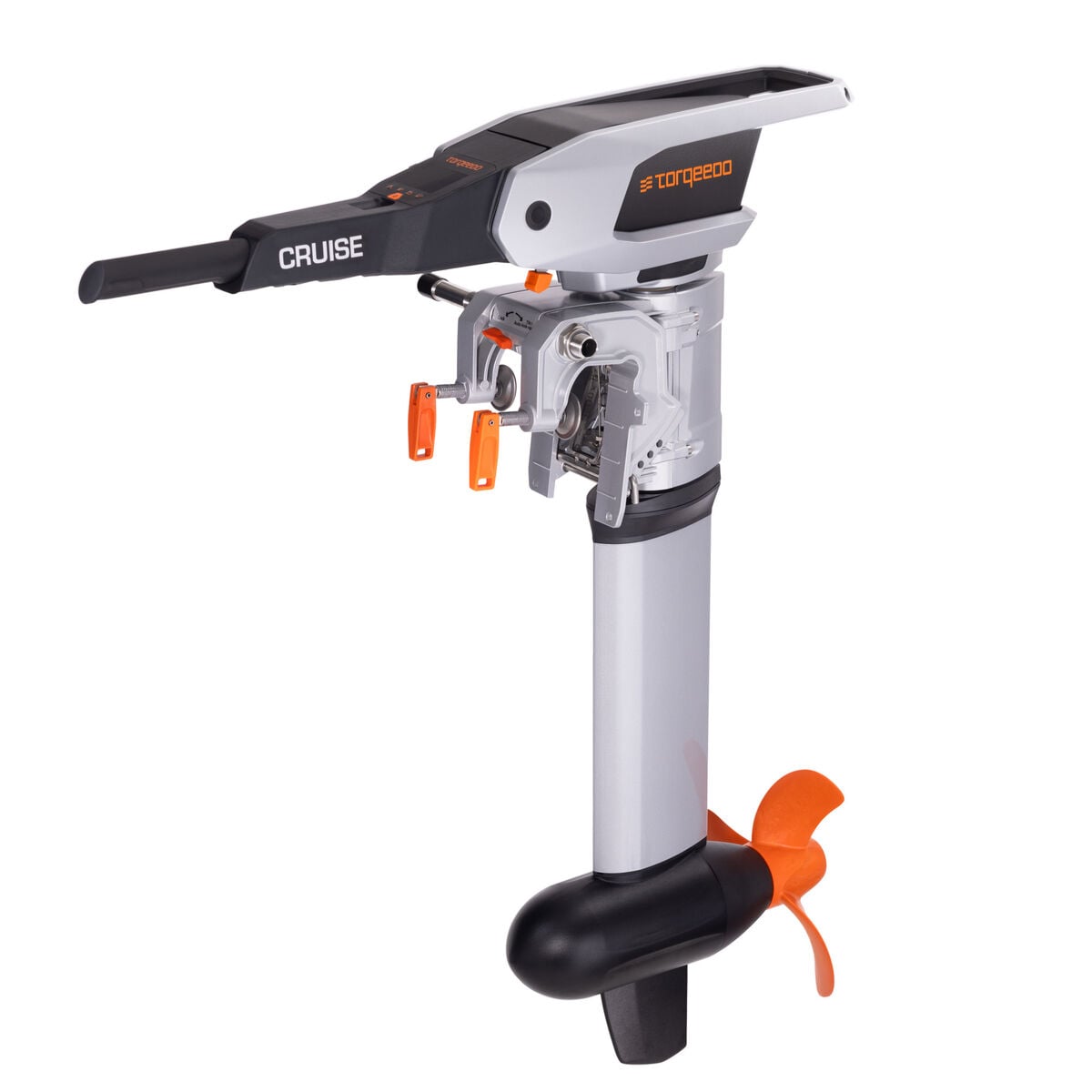

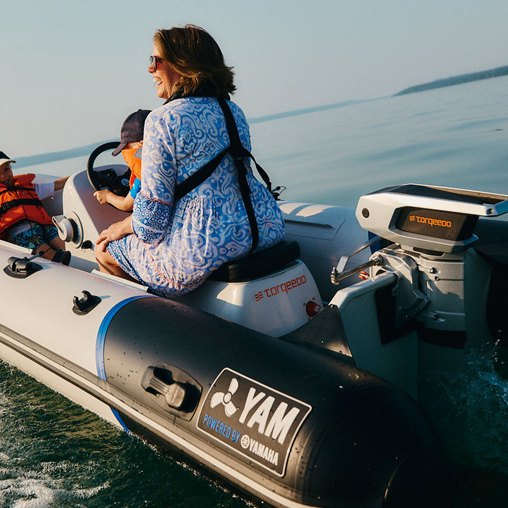

Torqeedo Cruise 6.0 R / T

The Cruise 6.0 (48 V) is the motor of choice for displacement boats up to 6 tons or sailboats up to 35 feet. The Cruise 6.0 (48 V) is the entry point into the world of planing, as it is our most budget-friendly motor capable of achieving planing speeds. Choose from short or long shaft, remote-steered (R), a tiller model (T), or fixed pod (FP).

Cruise Series

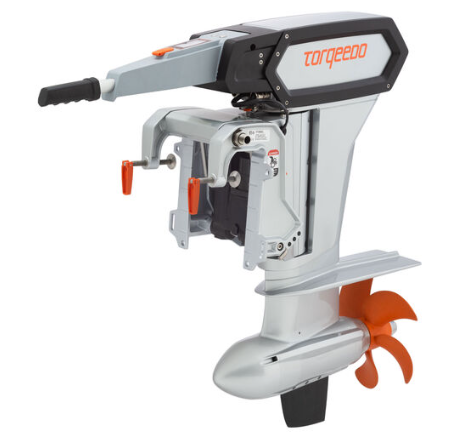

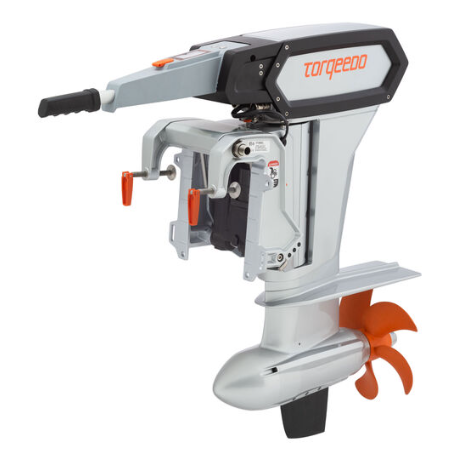

Torqeedo Cruise 10.0 T

Torqeedo Cruise 10.0 T is the latest addition in the Cruise Family. It is comparable to 20 HP Petrol OBM. Cruise motors have a built-in GPS, with on-board computer and display, showing information such as speed and input power, state of charge and remaining range, even with third-party (48 V) batteries. They have a robust, wear-resistant design thanks to features such as a housing that is waterproof to IP67, pylons made from aluminium and a specially reinforced fin. They team up with the purpose-developed propellers and additional Torqeedo components to create a highly impressive package. The flagship model in the Cruise series delivers 12 kW of peak output and a continuous output of 10 kW, which can propel efficient boats up to a maximum speed of 30 km/h. Its power supply requires at least two (Power 48-5000)

Technical Specifications

Technical Data Cruise 10.0 T
Input power in watts	10,000
Propulsive power in watts	5600
Comparable petrol outboards (propulsive power)	20 HP
Comparable petrol outboards (thrust)	25 HP
Total weight in kg	59.8(S)/61.3(L)/62.5 (XL)/ 60.3 (S)/ 61.8 (L)/ 63.0 (XL)
Shaft length in cm	38.5 (S)/51.2 (L)/ 63.9 (XL)
Maximum propeller speed in rpm	1400
Control	Tiller
Steering	Provision to connect to standard remote steering; lockable: Remote Model
Tilting device	Electrohydraulic tilt device with overload protection
Trim device	Manual, 4-step
Integrated on-board computer	Yes
Stepless forward/reverse drive	Yes

Cruise Series

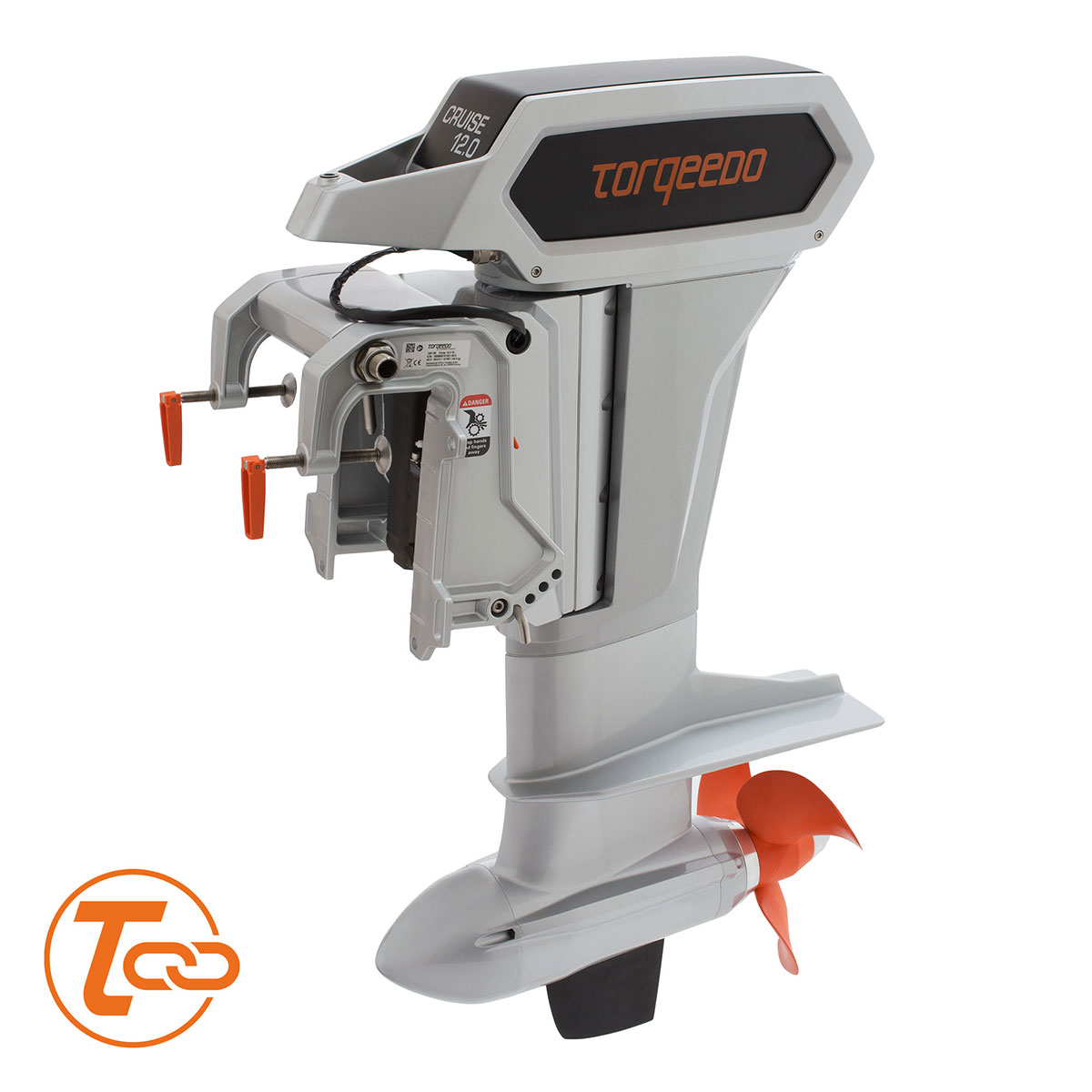

Torqeedo Cruise 12.0 R

Torqeedo Cruise 12.0 R is the latest addition in the Cruise Family. It is comparable to 25 HP Petrol OBM. Cruise motors have a built-in GPS, with on-board computer and display, showing information such as speed and input power, state of charge and remaining range, even with third-party batteries. They have a robust, wear-resistant design thanks to features such as a housing that is waterproof to IP67, pylons made from aluminium and a specially reinforced fin. They team up with the purpose-developed propellers and additional Torqeedo components to create a highly impressive package. The flagship model in the Cruise series delivers 12 kW of peak output and a continuous output of 10 kW, which can propel efficient boats up to a maximum speed of 22 km/h. Its power supply requires at least two (Power 48-5000)

Technical Specifications

Technical Data Cruise 12.0 R
Input power in watts	12,000
Propulsive power in watts	6720
Comparable petrol outboards (propulsive power)	25 HP
Comparable petrol outboards (thrust)	25 HP
Total weight in kg	59.8(S)/61.3(L)/62.5 (XL)
Shaft length in cm	38.5 (S)/51.2 (L)/ 63.9 (XL)
Maximum propeller speed in rpm	1400
Control	Remote throttle/ Tiller
Steering	Provision to connect to standard remote steering
Tilting device	Electrohydraulic tilt device with overload protection
Trim device	Manual, 4-step
Integrated on-board computer	Yes
Stepless forward/reverse drive	Yes

Deep Blue Series

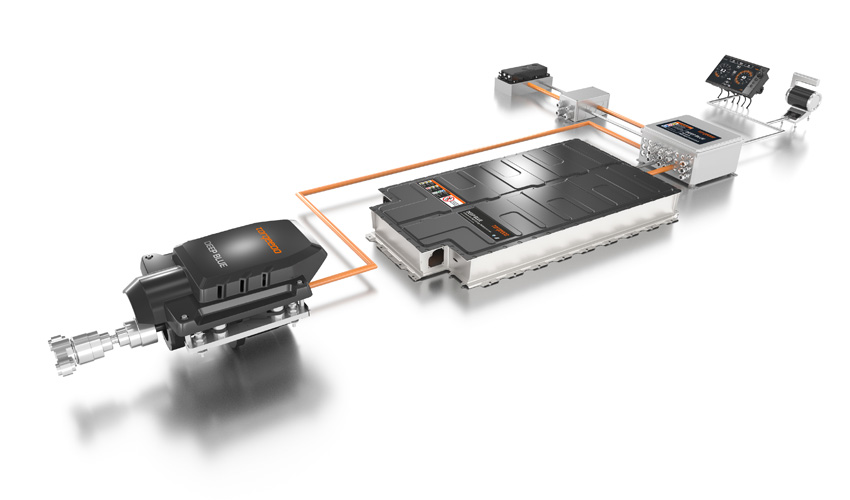

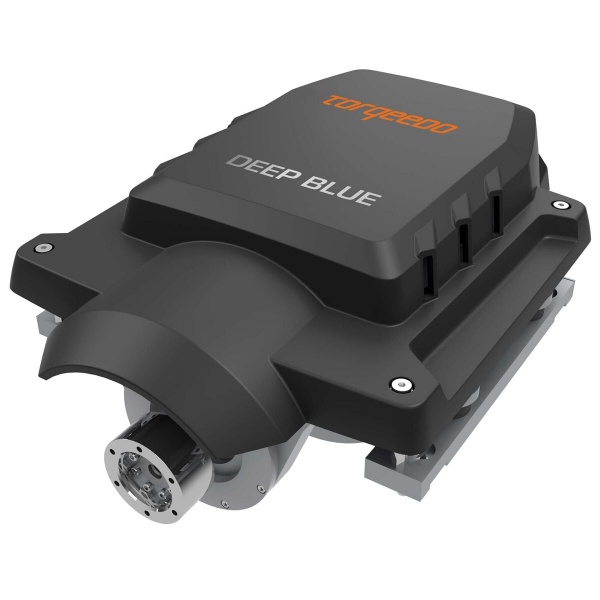

Torqeedo Deep Blue 25i

It is not just power and performance that make Deep Blue the first of its kind. It is unparalleled performance combined with full system integration and groundbreaking safety levels that set Deep Blue apart from all other electric propulsion systems on the market.

Technical Specifications

Technical Data Deep Blue 25i
Input power in kW	27.6
Propulsive power in kW	>16.2
Comparable petrol outboard (shaft power)	40 HP
Maximum overall efficiency in %	>54
Motor weight without battery, including electronics in kg	80
Shaft length / shaft diameter options	30, 35, 40mm \| 11/8,11/4''
Maximum propeller speed in rpm	1800 / 1400
Integrated on-board computer with touchscreen display	Yes
Liquid Cooling	Sea Water, 7 l/min, max. 32°C

Deep Blue Series

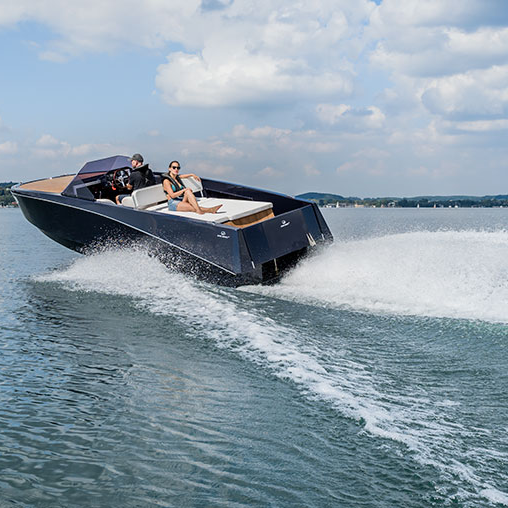

Torqeedo Deep Blue 50i

Technical Specifications

Technical Data Deep Blue 50i
Input power in kW	55.1
Propulsive power in kW	>32.4
Comparable petrol outboard (shaft power)	80 HP
Maximum overall efficiency in %	>54
Motor weight without battery, including electronics in kg	80
Shaft length / shaft diameter options	30, 35, 40mm \| 11/8,11/4''
Maximum propeller speed in rpm	1800 / 1400
Integrated on-board computer with touchscreen display	Yes
Liquid Cooling	Sea Water, 7 l/min, max. 32°C

Deep Blue Series

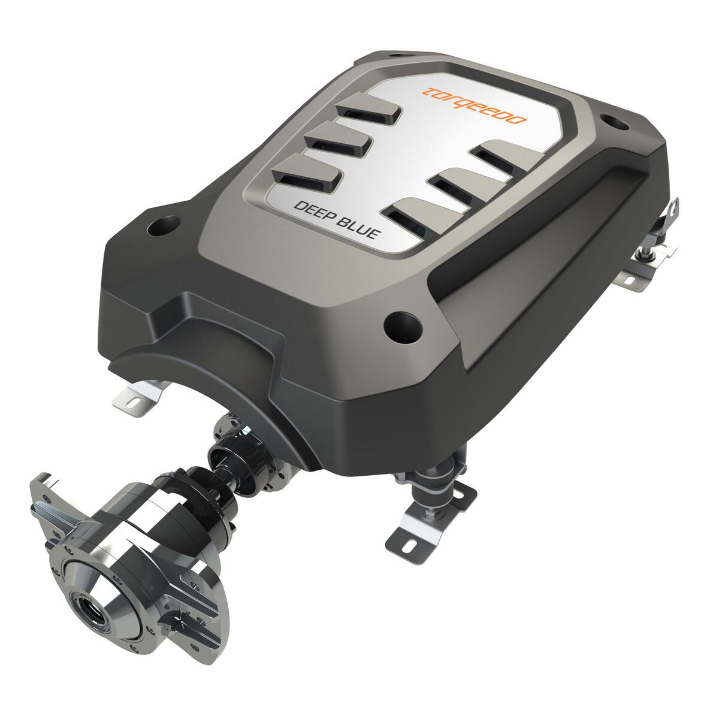

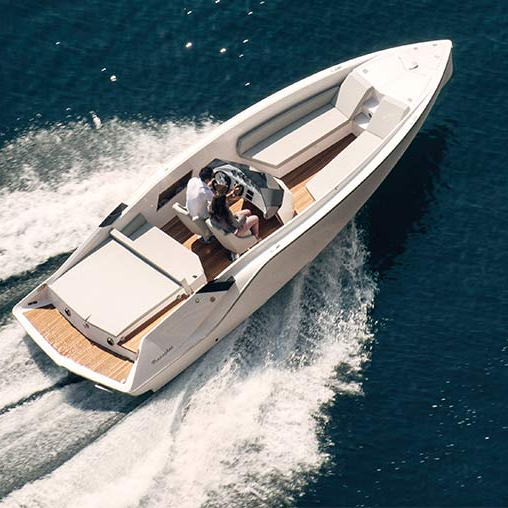

Torqeedo Deep Blue 100i

This 100 kW motor was specifically constructed to power fast, planing motorboats. With a reliable, low maintenance, direct-drive design, the Deep Blue 100i delivers extraordinary performance, with up to 2,500 rotations per minute and a torque of 385 Nm.

Technical Specifications

Deep Blue system	Deep Blue 100i 900 rpm
Maximum propeller speed in rpm	900
Input power (peak) in kW	-
Input power (continuous) in kW	100
Torque	1060 Nm
Comparable petrol outboard (shaft power)	135 HP
Motor weight without battery, including electronics in kg	465

Deep Blue Series

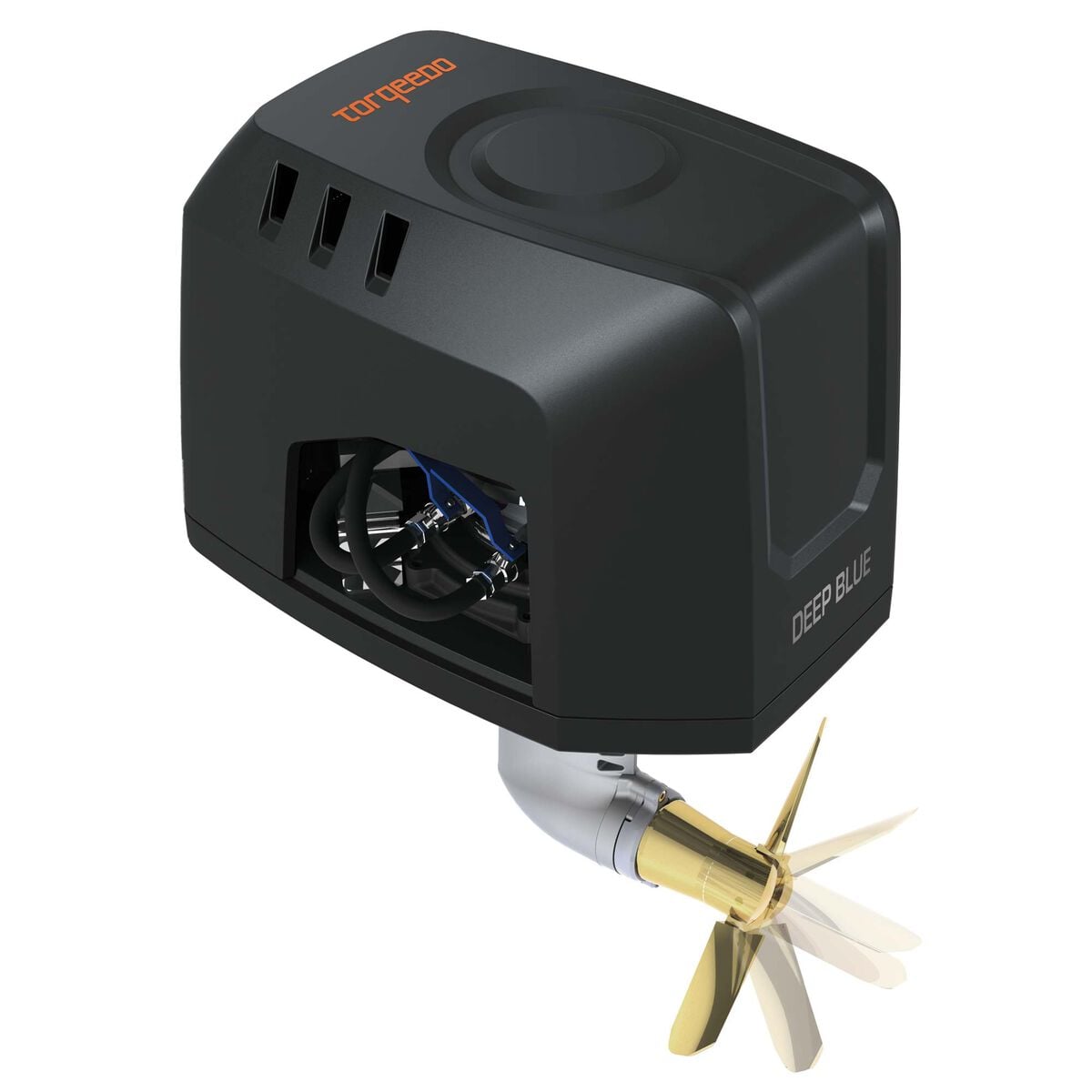

Torqeedo Deep Blue 25 SD

The most powerful electric saildrive from serial production is a Torqeedo. The Deep Blue SD can propel displacement vessels weighing up to 50 tons as well as large yachts at speeds of up to 18 km/h. This makes cruising with large yachts completely emission-free with virtually no noise or vibration. The shaft-free design allows installation at almost any point and makes maintenance of the Deep Blue SD very convenient. Seamless integration with the Deep Blue Hybrid system offers the option of energy recovery while sailing.

Technical Specifications

Technical Data Deep Blue 25 SD	Deep Blue 25 SD
Input power (continuous) in kW	25
Propulsive power in kW	16.2
Comparable petrol outboard (shaft power)	40 HP
Motor weight including electronics in kg	125
Shaft length	36.2 cm
Maximum propeller speed in rpm at full load	1,360

Deep Blue Series

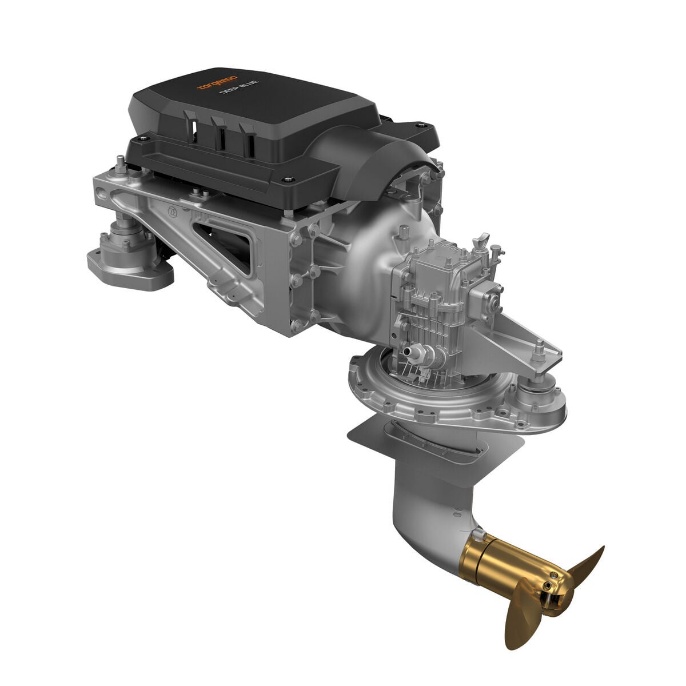

Torqeedo Deep Blue 50 SD

Discover the future of sailing with the Torqeedo Deep Blue SD, the strongest electric saildrive in serial production. It allows for emissions-free, noiseless and low-vibration rides on displacement boats up to 50 tonnes and large yachts at speeds of up to 18 km/h.

Technical Specifications

Technical Data Deep Blue 50 SD	Deep Blue 50 SD
Input power (continuous) in kW	56
Propulsive power in kW	50
Comparable petrol outboard (shaft power)	80 HP
Motor weight including electronics in kg	180
Maximum propeller speed in rpm at full load	1,205

Deep Blue Series

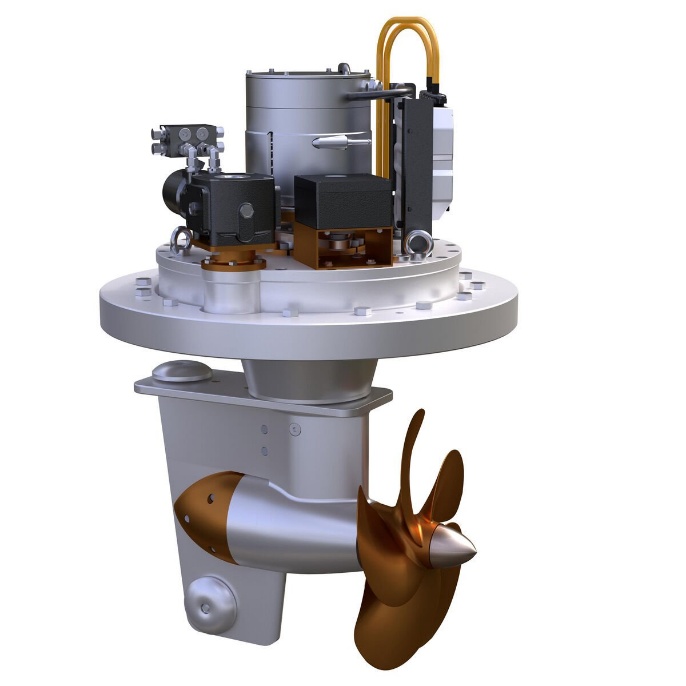

Torqeedo Deep Blue 50 Thruster

Introducing the Deep Blue 50 Thruster by Torqeedo – the pinnacle of power, efficiency, and reliability for discerning boaters. Designed for high-performance boats, commercial vessels, and luxury yachts, this exceptional thruster redefines marine propulsion. With its impressive thrust and cutting-edge electric technology, it delivers unparalleled performance on the water. Experience the thrill of effortless maneuverability, precise control, and whisper-quiet operation. The Deep Blue 50 Thruster ensures an environmentally friendly journey without compromising power. Choose the ultimate propulsion solution that combines sustainability and uncompromising performance – choose the Deep Blue 50 Thruster by Torqeedo.

Technical Specifications

Deep Blue Thruster	50 kW
Maximum propeller speed	1 070 rpm
Shaft power (continuous)	50 kW
Shaft power (peak)	65 kW
Torque	446 Nm
Gear	2.8
Weight (incl. electronics and propeller)	approx. 673 kg

Pod Drives Series

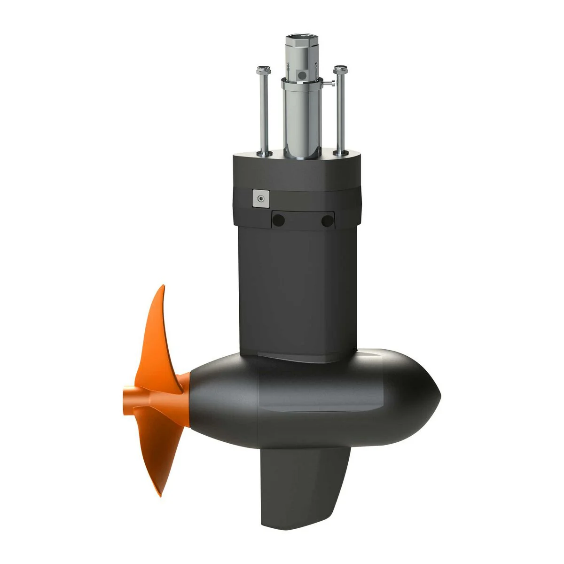

Torqeedo Cruise 3 FP Pod

Inconspicuous yet powerful, the Cruise pod models offer high-tech electric propulsion in the 6 to 25 HP performance class. Suitable for motorboats or sailboats up to 12 tons.

Technical Specifications

Technical Data Cruise 3 FP
Input power (continuous) [W]	3,000
HP-equivalent (propulsive power)	6 HP
Static thrust [lbs]	142
Nominal voltage [V]	48
Weight (motor only) [kg]	18.5 (FP)
Recommended battery	Power 48-5000
Standard propeller	Propeller B 12 × 10,5 WDR
Folding propeller	Propeller B 12 × 7 FLD
Maximum propeller speed [rpm]	1,100
Control	Remote throttle
TorqLink	TorqLink

Pod Drives Series

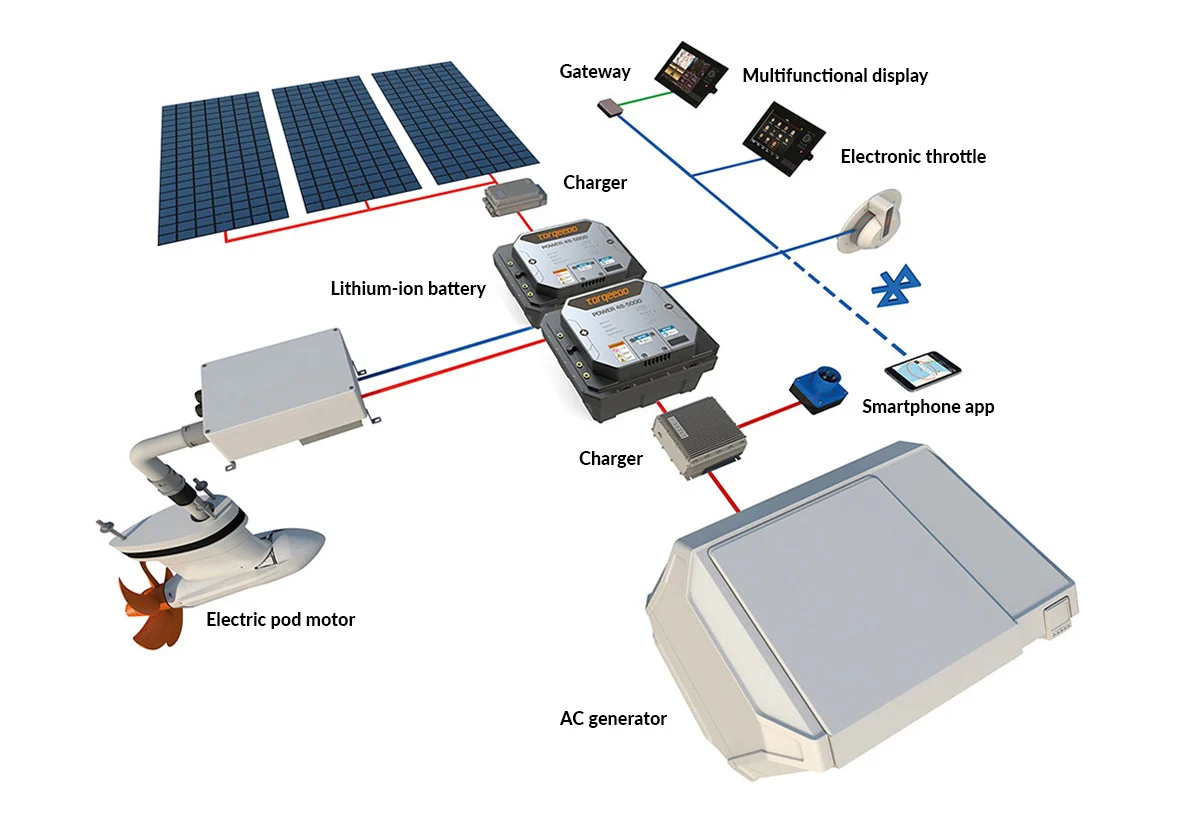

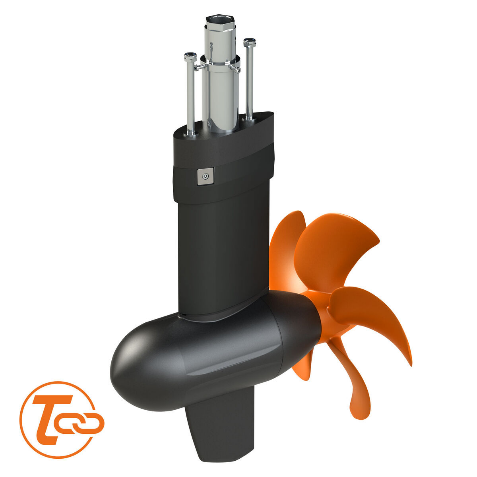

Torqeedo Cruise 6 FP Pod

Inconspicuous yet powerful, the Cruise pod models offer high-tech electric propulsion in the 6 to 25 HP performance class. Suitable for motorboats or sailboats up to 12 tons.

Technical Specifications

Technical Data Cruise 6 FP
Input power (continuous) [W]	6,000
HP-equivalent (propulsive power)	9.9 HP
Static thrust [lbs]	230
Nominal voltage [V]	48
Total weight in kg	14.7
Maximum propeller speed [rpm]	1,130
Control	Remote throttle
TorqLink	TorqLink

Pod Drives Series

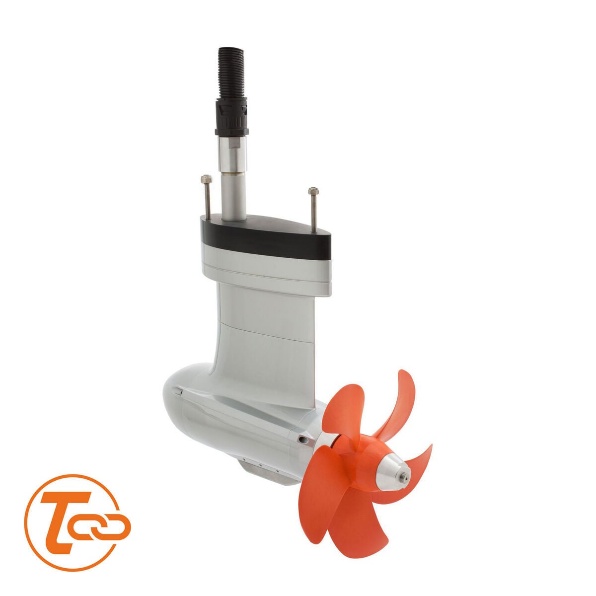

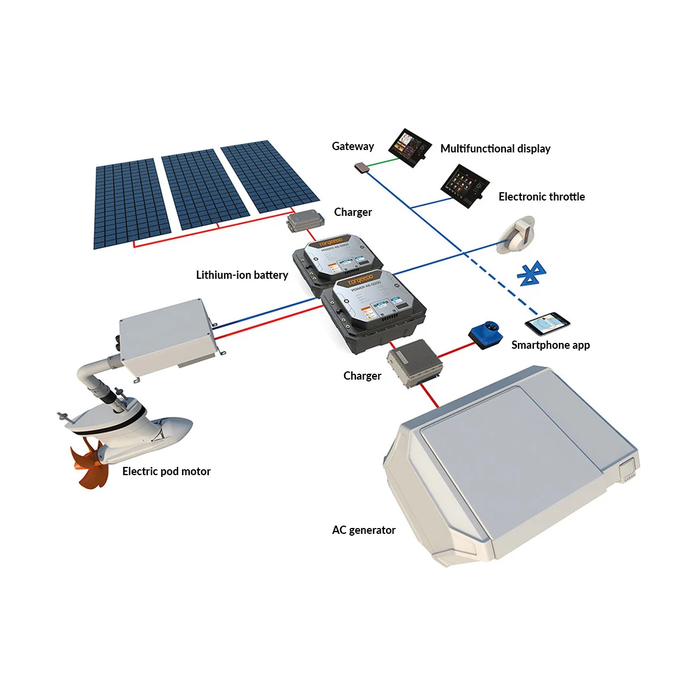

Torqeedo Cruise 12 FP Pod

Inconspicuous yet powerful, the Cruise pod models offer high-tech electric propulsion in the 6 to 25 HP performance class. Suitable for motorboats or sailboats up to 12 tons.

Technical Specifications

Technical Data Cruise 12 FP
Input power (continuous) [W]	12,000
HP-equivalent (propulsive power)	25 HP
Static thrust [lbs]	405
Nominal voltage [V]	48
Total Weight in kg	33.5
Maximum propeller speed [rpm]	1,400
Control	Remote throttle
TorqLink	TorqLink
