Marine Electric Engines

HAIBO Electric Trolling Motors

Intelligent GPS Anchor and High-Efficiency Trolling Systems

Overview

HAIBO ELECTRIC TROLLING MOTORS

Litmus Marine is the official partner of Haibo, a leading manufacturer of electric trolling motors with an impressive annual capacity of 200,000 sets. HAIBO provides over 20 series and 100 specifications of high-efficiency hand-controlled, foot-controlled, and remote GPS anchor systems designed for freshwater and saltwater kayaks, dinghies, and sport fishing boats.

HAIBO trolling motors represent the absolute state-of-the-art in silent angling. Equipped with intelligent GPS spot-lock positioning, brushless technology, and energy-efficient digital speed controls, Haibo motors offer unmatched thrust-to-weight ratios, saltwater-resistant composite shafts, and eco-friendly marine positioning.

The HAIBO Marine Advantage includes:
  • Intelligent GPS Spot-Lock anchoring with precision positioning
  • Quiet brushless motors for zero noise and long efficiency
  • Robust saltwater-resistant composite and marine-grade casing
  • Extensive range of models from mini outboards to foot controllers
The Range

HAIBO Range

GPS-anchor, hand-control and brushless trolling motors.

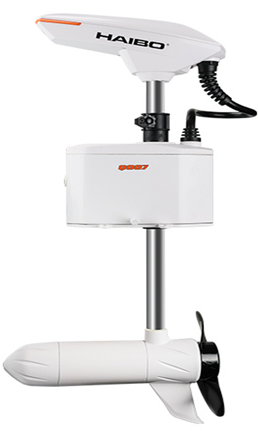

HAIBO IPENGUIN P70 GPS Trolling Motor
GPS Trolling Motors

HAIBO IPENGUIN P70 GPS Trolling Motor

The HAIBO IPENGUIN series (P70 / P90 / P125) represents the absolute state of the art in intelligent GPS electric trolling motors. Engineered for freshwater and saltwater angling, these bow-mounted motors feature precise Spot-Lock GPS anchoring, track recording, and cruise control. Equipped with a digital variable speed system and wireless hand-held remote, the IPenguin series provides silent, reliable, and energy-efficient boat positioning.

Key Features
  • Model Range: IPENGUIN P70 (70 lbs, 24V), P90 (90 lbs, 24V), and P125 (125 lbs, 36V)
  • Intelligent GPS Control: Precision Spot-Lock anchor positioning, route memory, and speed tracking
  • Speed Control: Step-less variable digital forward and reverse controls
  • Heavy-Duty Shaft: 54-inch (or optional lengths) indestructible saltwater-resistant composite shaft
  • Control Methods: Standard wireless hand remote and optional foot control pedal
  • Saltwater Protection: Sacrificial anode, anti-corrosion marine hardware, and powder-coated casing
HAIBO IPENGUIN P90 Sport Trolling Motor
GPS Trolling Motors

HAIBO IPENGUIN P90 Sport Trolling Motor

The HAIBO IPENGUIN series (P70 / P90 / P125) represents the absolute state of the art in intelligent GPS electric trolling motors. Engineered for freshwater and saltwater angling, these bow-mounted motors feature precise Spot-Lock GPS anchoring, track recording, and cruise control. Equipped with a digital variable speed system and wireless hand-held remote, the IPenguin series provides silent, reliable, and energy-efficient boat positioning.

Key Features
  • Model Range: IPENGUIN P70 (70 lbs, 24V), P90 (90 lbs, 24V), and P125 (125 lbs, 36V)
  • Intelligent GPS Control: Precision Spot-Lock anchor positioning, route memory, and speed tracking
  • Speed Control: Step-less variable digital forward and reverse controls
  • Heavy-Duty Shaft: 54-inch (or optional lengths) indestructible saltwater-resistant composite shaft
  • Control Methods: Standard wireless hand remote and optional foot control pedal
  • Saltwater Protection: Sacrificial anode, anti-corrosion marine hardware, and powder-coated casing
HAIBO IPENGUIN P125 High-Thrust GPS
GPS Trolling Motors

HAIBO IPENGUIN P125 High-Thrust GPS

The HAIBO IPENGUIN series (P70 / P90 / P125) represents the absolute state of the art in intelligent GPS electric trolling motors. Engineered for freshwater and saltwater angling, these bow-mounted motors feature precise Spot-Lock GPS anchoring, track recording, and cruise control. Equipped with a digital variable speed system and wireless hand-held remote, the IPenguin series provides silent, reliable, and energy-efficient boat positioning.

Key Features
  • Model Range: IPENGUIN P70 (70 lbs, 24V), P90 (90 lbs, 24V), and P125 (125 lbs, 36V)
  • Intelligent GPS Control: Precision Spot-Lock anchor positioning, route memory, and speed tracking
  • Speed Control: Step-less variable digital forward and reverse controls
  • Heavy-Duty Shaft: 54-inch (or optional lengths) indestructible saltwater-resistant composite shaft
  • Control Methods: Standard wireless hand remote and optional foot control pedal
  • Saltwater Protection: Sacrificial anode, anti-corrosion marine hardware, and powder-coated casing
PLATYPUS Q007 Kayak Anchor Motor
GPS Trolling Motors

PLATYPUS Q007 Kayak Anchor Motor

The PLATYPUS Q007 Kayak Anchor Motor is a specialized smart positioning electric trolling motor designed specifically for fishing kayaks and small dinghies. Featuring a compact, space-saving design, it provides precision positioning and intelligent anchoring, enabling kayak anglers to stay locked on their fishing spots silently without drifting.

Key Features
  • Power Profile: 40 lbs thrust (12 V operating voltage)
  • Smart Anchoring: Integrated kayak-optimized precision spot anchoring
  • Shaft Length: 30-inch indestructible composite shaft
  • Mount System: Compact kayak transom bracket with adjustable tilt angles
  • Propulsion Unit Weight: Extremely lightweight (approx. 8.5 kg) for kayak stability
  • Speed control: Multi-stage speed levels (5 forward and 3 reverse speeds)
HAIBO M Series Brushless Outboard
Brushless Motors

HAIBO M Series Brushless Outboard

The HAIBO M Series represents a premium line of brushless electric trolling outboards. Using advanced brushless motor technology, these hand-controlled outboards provide exceptionally quiet operation, high efficiency, and deep thrust. Suitable for small fishing boats, RIBs, and recreation, they deliver long-running battery performance and zero maintenance.

Key Features
  • Motor Type: Quiet, high-efficiency brushless induction motor
  • Thrust Limits: High-thrust ratings (typically 80 lbs or 110 lbs)
  • Speed control: Step-less variable digital forward and reverse speeds
  • Operating Voltage: 12 V or 24 V depending on model size
  • Battery Meter: Integrated digital LED indicator for live voltage check
  • Protection: Saltwater-resistant composite shaft and anodized alloy casing
HAIBO Mini Trolling Motor (T18/T24)
Hand Control & Mini Series

HAIBO Mini Trolling Motor (T18/T24)

The HAIBO Mini Series (T18 and T24) are ultra-lightweight and highly portable electric trolling motors. Specially designed for small dinghies, inflatables, and kayaks, they offer a very compact, easy-to-use, and budget-friendly propulsion solution that can be set up in seconds.

Key Features
  • Model Options: HAIBO T18 (18 lbs thrust) and T24 (24 lbs thrust)
  • System Voltage: 12 V low-voltage system
  • Speed Control: 2 forward and 2 reverse speed gears
  • Transom Mount: Multi-position lightweight bracket, quick-clamp
  • Portability: Extremely lightweight unit weight (approx. 2-3 kg), easy for solo boating
  • Propeller: 2-blade high-pitch weedless propeller
HAIBO ET SERIES HAND-CONTROL TROLLING MOTOR (54 LBS)
Model

HAIBO ET SERIES HAND-CONTROL TROLLING MOTOR (54 LBS)

The HAIBO ET Series hand-control trolling motors offer classic manual electric trolling performance for a wide range of budgets. Built with high-grade marine paint finishes and anti-corrosion components, ET series motors are simple, reliable, and highly popular for recreational angling, kayak trolling, and small inflatable dinghies.

Key Features
  • Nominal Thrust: 54 lbs / 12 V operating voltage
  • Speed Options: 5 forward and 3 reverse manual speeds via telescoping control handle
  • Indestructible Shaft: 36-inch impact-resistant composite shaft
  • Propeller Design: Heavy-duty 3-blade weedless propeller
  • Durability: Anti-corrosion casing and marine-grade stainless hardware

Ready to go electric?

Tell us about your boat and duty cycle — we'll size the right system and battery bank.
